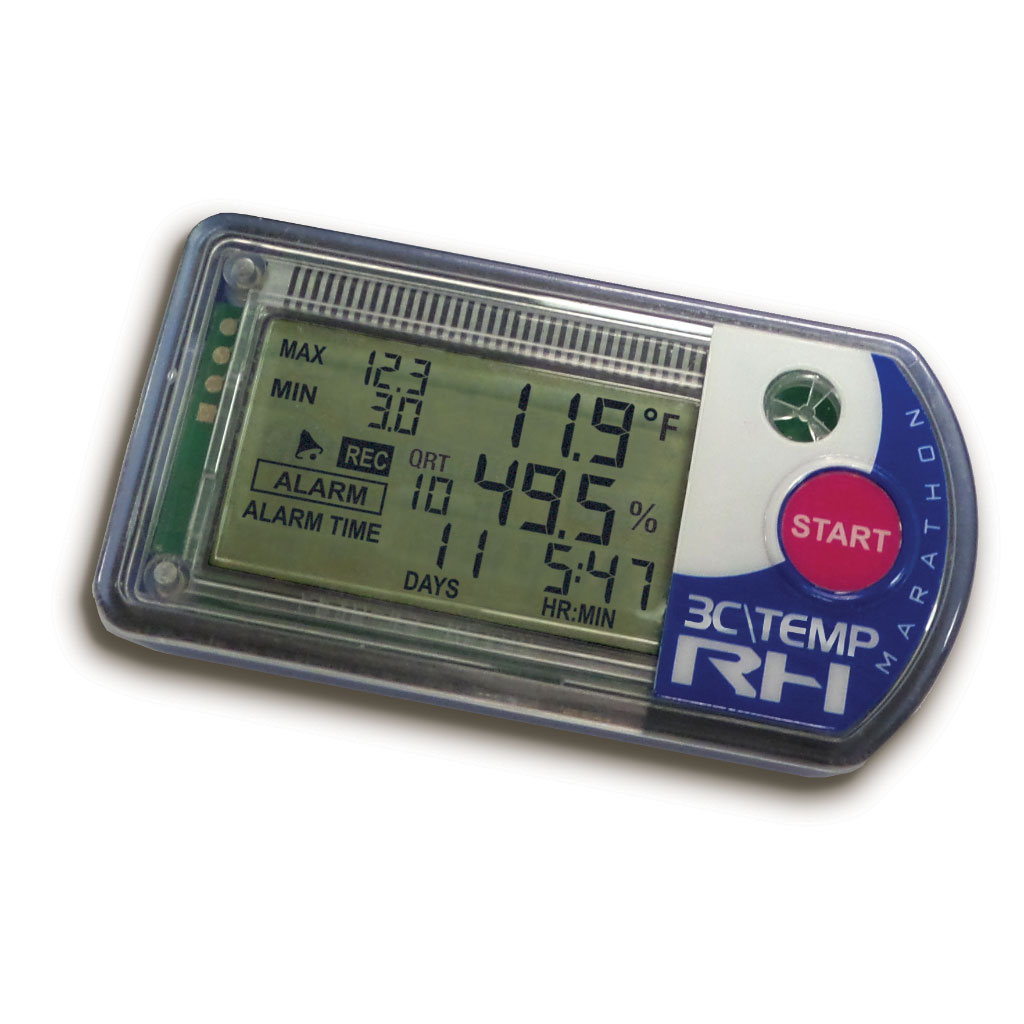

3C\TEMP-RH Temperature & Humidity Logger
AED 291.60
A multi-use or single-use, user programmable, electronic temperature and humidity data recorder with LCD screen.
Temperature & Humidity Logger with Real-Time LCD Display for Instant Acceptance or Quarantine Decisions.
This revolutionary, multi-use, user-programmable, electronic temperature data recorder is specifically designed for measuring temperature and humidity during the transportation of refrigerated vaccines, biological material, chemicals, pharmaceuticals, and for documenting the transportation of perishable commodities. They are NIST-Traceable and come with Certificates of Calibration.
Functions include:
Internal Thermistor: accurately records time and temperatures for pre-set readings in Celsius or Fahrenheit.
LCD display: Real-time viewing of Current temperature, Max/Min Temperature, Run Time, Alarm Status, and Recording Status.
Small Form Factor:
These units have an extended battery life and can endure rough handling. The internal software records the following: start time, sampling intervals, end description for special instructions, alarm values, recording status, measurement data, software version, serial number, model type.
Visual Alarms:
All our data loggers can be programmed with alarm limits. Should the temperature reach levels outside these limits, the LCD will display “ALARM.” To start the recorder, simply press the start button!
Computer Ready:
Marathon’s easy-to-use MaxiThermal2 software is available for Microsoft Windows XP, 7, 8, 8.1 & 10. Simply plug the unit into a standard USB port on your PC. The Maxi-Thermal2 software and USB cable are required accessories and are sold separately.
Logger Category, Description | Category 2. Multi-Use. Temperature and Humidity (RH) data logger with LCD screen, built-in Mini-USB connection, and a compact size. |
Memory/Storage | 8k memory (approximately 8,000 measurements) |
Internal Sensor | Temperature: |
External Sensor/Probe count and connector type | None |
Alarm Programming | User configurable. High and low alarm limits can be set by temperature. |
Alarm Modes | Exceed Limit. See Alarms for more information. |
Alarm Reset Options | Alarm is reset when logger is erased and reprogrammed |
Alarm Notifications | On screen text. See Alarms for more information. |
Audible Alarm | None |
Display | LCD screen |
Indicators | On screen text |
Size and Weight | 6.5 cm(l) x 3.4 cm(w) x 0.9 cm (h) / 2.5 in.(l) x 1.3 in (w) x .35 in.(h) |
CE Certified | Yes |
Water-resistant | No |
Internal Firmware, Internal Clock Accuracy | Internal Clock, Start/Stop time, Interval, User description, Alarm values, Recording status, Firmware version, Serial number, Model. |
Measurement Intervals | Programmable from 2 seconds per reading. See Duration Chart for examples. |
Computer Interface (physical) | Mini-USB |
Data Retrieval Method | Download to PC using a compatible cable and software |
Programming (Initialization) Method | User Programmable through PC using a compatible cable and Marathon software |
Wireless Connection and Range | None |
Remote Monitoring and Network Connection type | None |
Required Accessories: | Compatible Software (1 required for operation): • MaxiThermal2, • 21 CFR |
Optional Accessories: | Mounting Bracket |
Included paperwork | Quality Control sheet, NIST certificate, Packing List included with all purchases. See the Calibration page for more information. |
Optional Paperwork | Calibration Report including data included with purchase of Optional Calibration. See the Calibration page for more information. |
Power Source, Battery Life and Replacement | One CR2450 Battery. 1 year operating life, and 2 year shelf life. See Battery Performance page for more information. |
Warranty |
Marathon’s MaxiThermal2 Software for USB Data Loggers
Marathon’s MaxiThermal2 Software allows you to view up to 8 multiple traces at one time, enables you to transfer the recorded information in your loggers to your computer, and to view, print and generate a report of the measurement data. The graphic representations are a simple X – Y plot of time versus temperature with unlimited zoom, view temperature data points on the graph, view total elapsed time, or the exact time when it was recorded. The graph and all data points (date, time and temperature) can be printed, as well as the ability to add a user note to the file for including information pertinent to that particular plot.
Users have the ability to view numeric data in a screen window and Data can be Exported as a CSV file for use in other software. A Summary Information report showing the specific logger information, the Start and Stop Time, Duration of Recording, Measurement Interval, Highest, Lowest, Median and Average Temperatures as well as the High and Low Alarm information.
The data from the logger is easily downloaded to your PC via a standard USB 1.1 interface. MaxiThermal2 software is compatible with Windows XP, Vista, 7, 8 and 10.
